SL-600
-

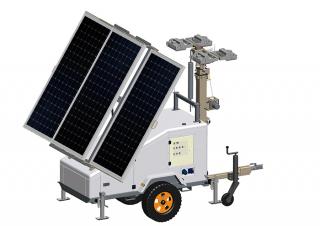

Solar photovoltaic mobile light towers utilize the advantages of solar renewable energy, adopt efficient LED lighting which is brighter than general lighting and is more energy-efficient, thus avoiding all the shortcomings inherent in diesel lighting systems. In addition, it also has the advantages of no operating costs, no carbon emissions, no noise, no pollution and so on. Suitable for special situations, construction sites and other applications required lighting.
-
Manual winch for extending and retracting the light mast, 4 stages up to 9 meters
-
Bottom forklift port.
-
Individual breaker switch for each lamp assembly
-
German AI-KO off road , driving speed ≤25km/h
-
Fully charged can run 7 hours
-
Mute processing level 0 dB(A)
-
Technical Parameters:
-
Series
SL
Product Model
MLT4KME-300MP
Pack Dimension (L*W *H)
3483*1151*1883mm
Outside Dimension (L*W *H)
2815"2294*9000mm
Weight (net)
720kg
JAM6-72-310/S1
Maximum Power(W)
2*310
Maximum Power Voltage(V)
54
Maximum Power Current(A)
8.18
Dimension (L*W *H)
1996*991*45mm
Extending type
Manual operation
Extending area
3.5m2
LED Lamp model
JR309-100W
Input Voltage
DC48V
LED Power
4*75W
Light Beam Angle
120 degree
LED Luminous flux
44000Lms
Correlated Color Temperature
5700K
Protection class
IP67
Battery Bank model
DJM12200(12V200AH)
Type
Solar Energy Deposited
Macimum Charging Current(A)
28.5
Quantity (pcs)
4
