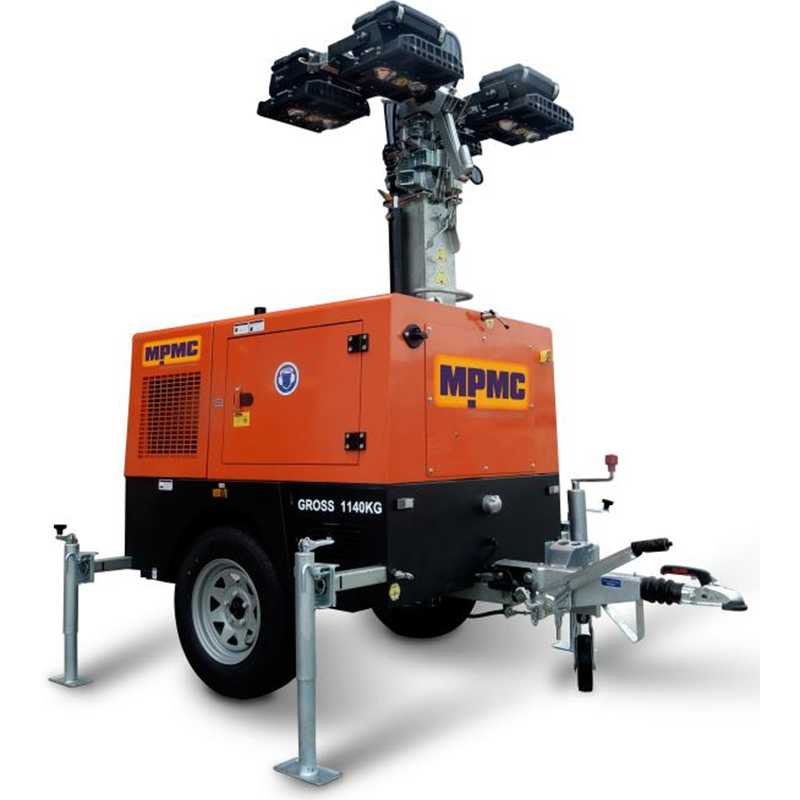

9m High Metal Halide Hydraulic Lighting Tower 4000w (Lhs1)
  • Diesel or Solar:
    Diesel
  • Lamp type:
    Metal Halide
  • Lamp power:
    4000W(4*1000W)
  • Mast lifting:
    Hydraulic
  • Series:
    LHS

LHS1 -4000

  • MPMC light towers, relied on its high reliability, maximum safety, easy operation and simple maintenance etc., are suitable for varies applications like construction site, mining filed, rental business, public equipment service, accident handling, large-scale event, homeland defense and disaster relief.

  • Features Description:

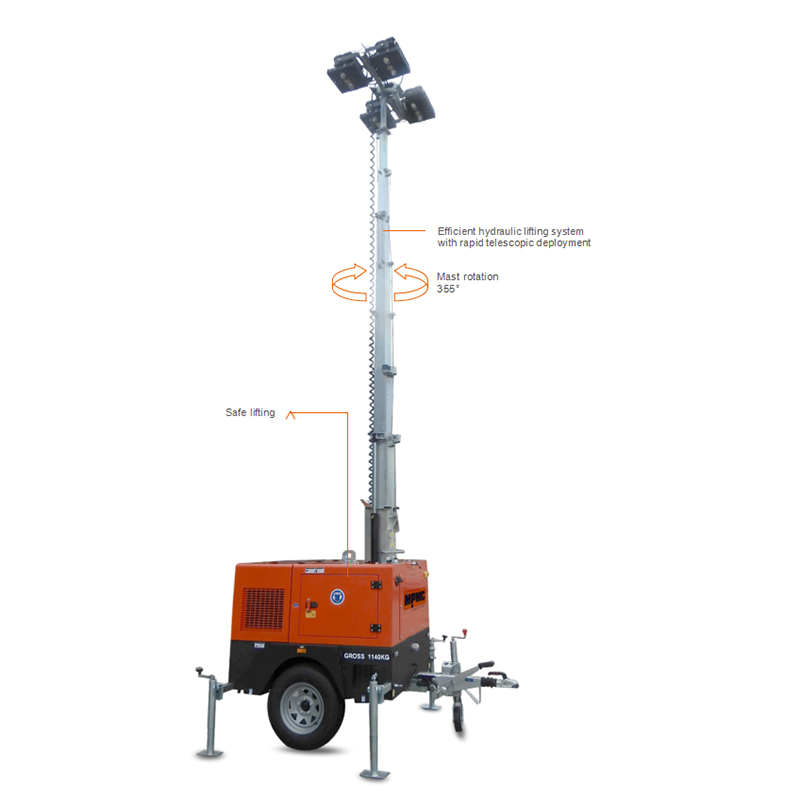

  • Powerful hydraulic lifting system,9 stages mast up can lift to 9m by one-button

  • High strength stainless steel pull rope

  • High-efficiency LED light, AC 230V/240V and DC 48V optional

  • Heavy-duty design, top lifting hole and bottom forklift port.

  • Multi-protected spray canopy with independent lockable access door

  • Residual current device protection (RCD), individual breaker switch for each lamp assembly

  • Fully-enclosed chassis fuel tank meets continuous 50h operation

  • Mute processing, noise level 63dB @ 63m (A)

  • Genuine Kubota engine to meet EPA Tier 4 emission standards

  • German AI-KO trailer, speed ≤65km/h

  • Brakes and parking brakes, brake taillights and turn signals

  • 4 manual support legs which make it more stable

  • Technical Parameters:

  • Series

    LHS1

    Model

    MLT4KME-4000LHS1

    MLT4KSC-4000LHS1

    Rated Power

    47kW

    5.5kW

    6.0kW

    7.4kW

    6.0kW

    7.0kW

    Type of lights

    Metal Halide Floodlight 4*1000w

    luminous efficiency

    4*55000 Lumens

    Lamps Rotation

    Allow manual rotation of 75°

    Receive size

    2300X1280X2533mm

    lMast Heigth

    Fully Extended 9000mm

    Weight (net)

    1150kg

    1120kg

    Fuel Tank Capacity

    100L,Fuel Tank Operating 50 h

    Engine Brand

    Kubota

    Engine Model

    D905

    1105

    Z482

    Z482 EPA Tier4

    Frequency (Hz)

    50

    60

    50

    60

    50

    60

    Alternator Model

    LT130

    LT100

    LT130

    LT100

    EK2MCT
